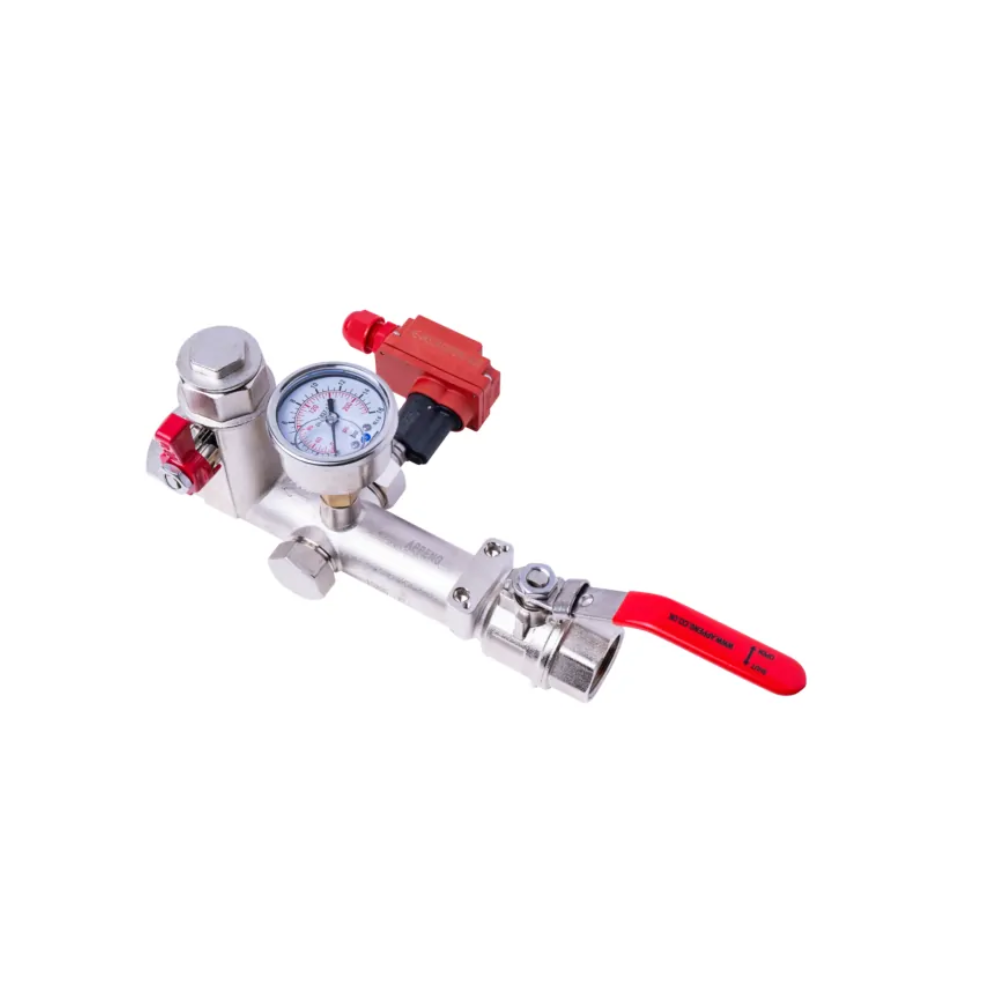

AE VS-A – Dual Port Fire Sprinkler Valve Set

Applications Engineering Ltd have developed an innovative, compact and affordable fire sprinkler valve set that covers all the requirements of a modern domestic and residential property fire sprinkler system and offers the following benefits and features

Benefits and Design features
• Dual ports that enable the flow switch to be mounted on either side.
• Uses our own purpose built flow switch. which has been designed specifically for the valve set to operate at 25 L/min
• The flow switch has a ¾” union nut for simple, hand tight, installation. No need for tools or awkward 360° rotation of the whole switch.
• Available with optional CPVC mating sockets.
• 100% pressure tested.
• Lockable inlet valve handle
• Glycerine filled 16 bar pressure gauge
• Easy access for servicing
• Space saving – compact size
• Less joints minimise risk of leaks

Available in 1″ (25mm)  and 11/4″ (32mm) versions.
