Bulk Head Fitting Left Hand Thread with Female NPT Thread

Bulk Head Fitting Left Hand Thread with Female NPT Thread

It is used as an outlet for liquid storage tanks.

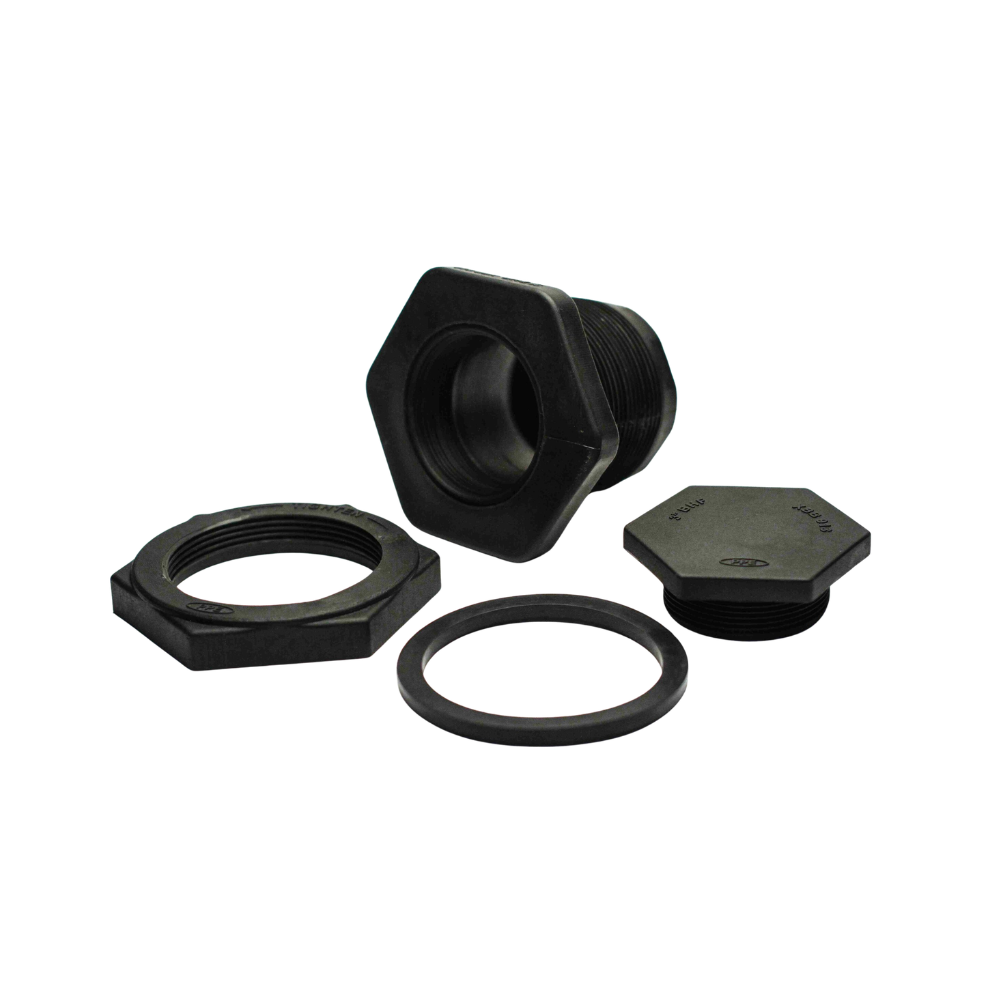

A 3 piece assembly. The Bulk Head is pushed through the tank wall, a gasket/seal is placed between the bulk head and tank wall and then then the nut is tightened on the Bulk Head giving a good seal.

Product Detail

About This Product

		Dimensions
Part #	Part Name	A	B	C	D	E
XBB 940	3/4″ NPT Female Bulk Head Fitting	65mm	43.5mm	36mm	46mm	3/4″ NPT
XBB 930	1″ NPT Female Bulk Head Fitting	65mm	43.5mm	36mm	46mm	1″ NPT
XBB 920	2″ NPT Female Bulk Head Fitting	100mm	75mm	55mm	67mm	2″ NPT
XBB 920-P	2″ NPT Female Bulk Head Fitting with Plug	100mm	75mm	55mm	67mm	2″ NPT
XBB 910	3″ NPT Female Bulk Head Fitting	150mm	115mm	100mm	120mm	3″ NPT
XBB 910-P	3″ NPT Female Bulk Head Fitting with Plug	150mm	115mm	100mm	120mm	3″ NPT

Quick Facts

Category

Lead time On request

Availability In Stock
