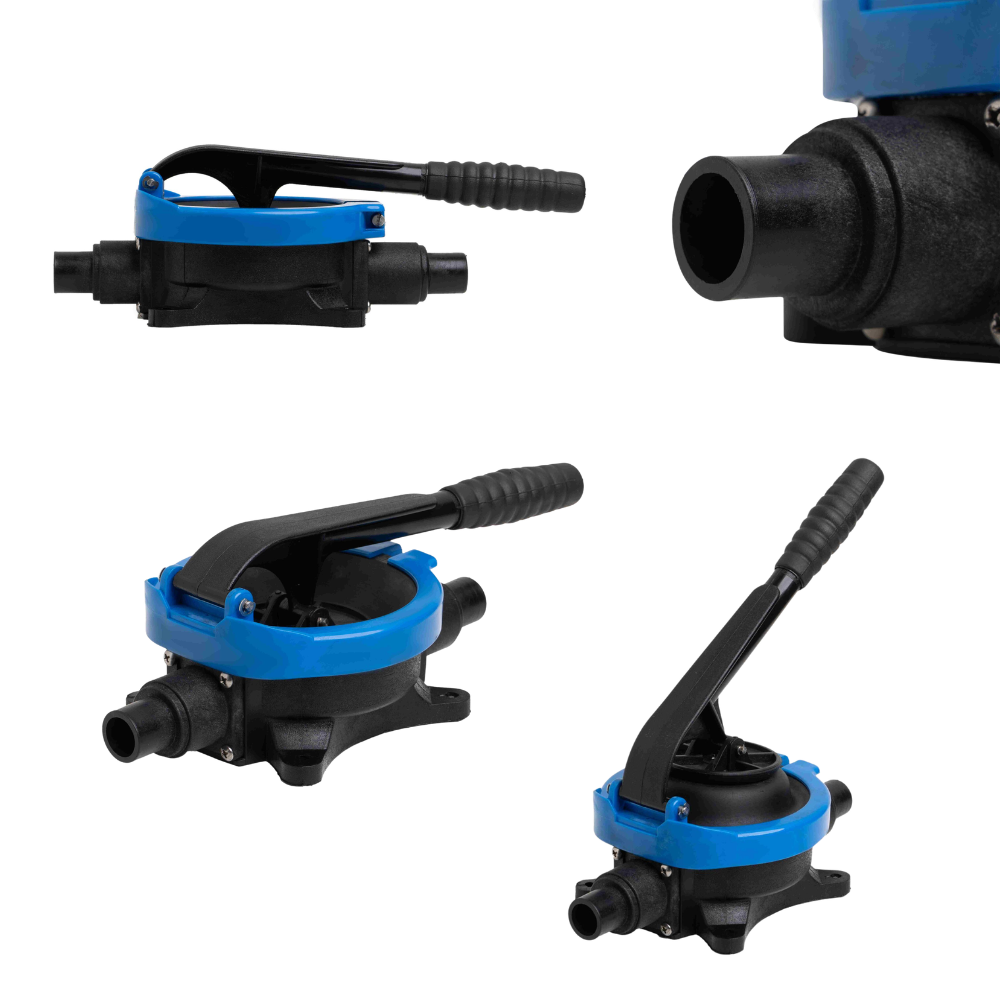

Hand Pump – Low Profile

Manual Hand Operated Pumps.

Ideal for flushing in Portabte Toilets. And as a bilge pump in Boats.

Product Detail

About This Product

Part #		Part Name
XPH 340		Hand Pump- Low Profile

Dimensions
	XPH 340		XPH 340-E
	Inches	mm	Inches	mm
A	4.22	107.2	4.22	107.2
B	4.3	109.2	4.3	109.2
C	0.29	7.3	0.29	7.3
D	9.84	250	9.05	230
E	12.72	323	12.72	323
F	4.13	105	4.13	105
G	9.45	240	9.45	240
H	7.28	185	7.28	185
Weight

Material
Pump Body					Glass Reinfoced Nylon
Connectors / Barb Hose					Glass Reinfoced Nylon
Umbrella / One Way Valves					Nitrile Rubber
Diaphragm / Rubber Boot					Neoprene
Hardware					SS 304

Performance
Flow Rate per Pump					10.0 oz / 300ml
Max Lift					5 ft / 1.5 Meter)
Max Head					10ft / 3 Meter
Mx Service Temp					167 Farenheit / 75 Celcius

Quick Facts

Category

Lead time On request

Availability In Stock
