| Part # | Part Name | |||||||

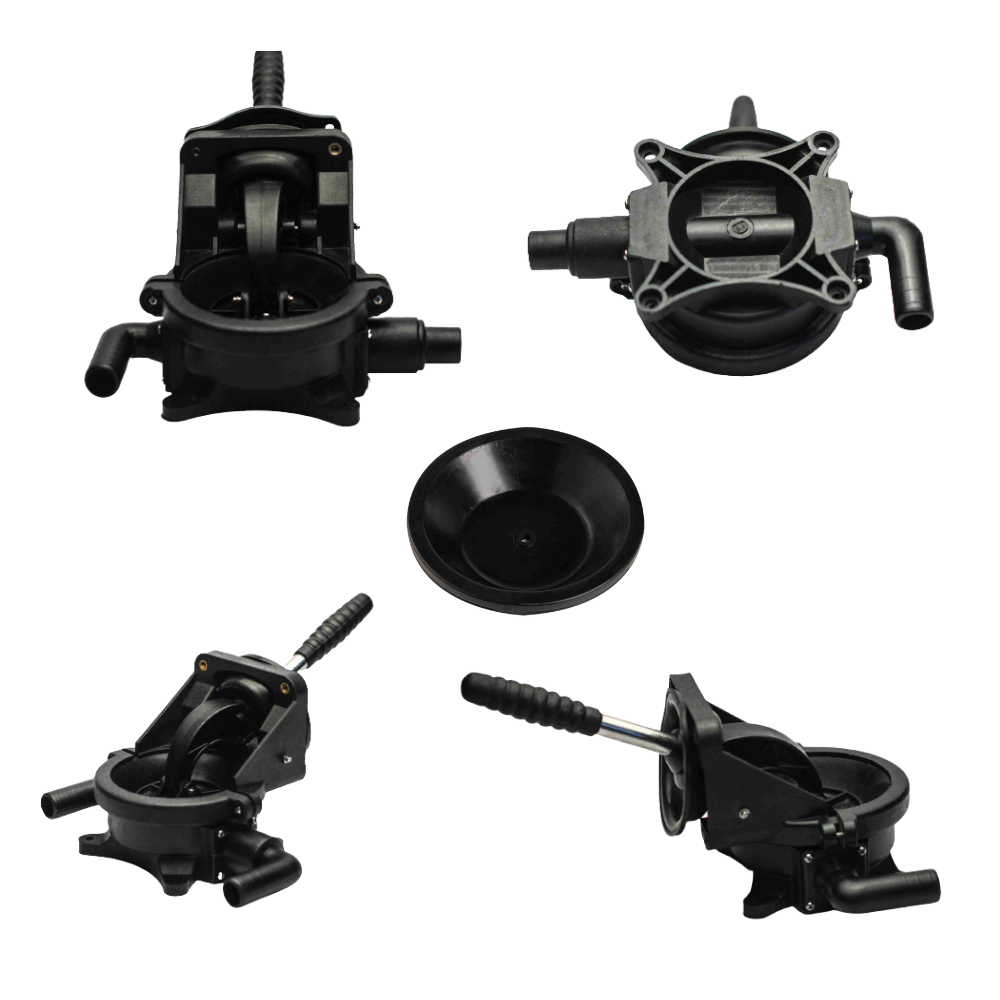

| XPH 320 | Hand Pump – Standard Single Elbow | |||||||
| XPH G10 | Hand Pump – Standard Double Elbow | |||||||
| Dimensions | ||||
| XPH 320 Inlet Elbow and Out Straight |
XPH G10 Inlet & Outlet Elbow |
|||
| Inches | mm | Inches | mm | |
| A | 4.22 | 107.20 | 4.22 | 107.00 |
| B | 4.30 | 109.20 | 4.30 | 109.20 |
| C | 0.29 | 7.30 | 0.29 | 7.30 |
| D | 9.05 | 230.00 | 9.30 | 236.00 |
| E | 6.42 | 163.00 | 6.42 | 163.00 |
| F | 2.35 | 59.60 | 2.35 | 59.60 |
| G | 0.32 | 8.20 | 0.32 | 8.20 |
| H | 6.42 | 163.00 | 6.42 | 163.00 |
| T | 3.70 | 94.00 | 3.70 | 94.00 |
| U | 2.97 | 75.50 | 2.97 | 75.50 |
| V | M6 | M6 | ||
| X | 5.90 | 150.00 | 5.90 | 150.00 |
| Y | 5.83 | 148.00 | 5.83 | 148.00 |
| Z | 2.16 | 55.00 | 2.16 | 55.00 |
| Weight | ||||
| Material | ||||||||
| Pump Body | Glass Reinfoced Nylon | |||||||
| Connectors / Barb Hose | Glass Reinfoced Nylon | |||||||
| Umbrella / One Way Valves | Nitrile Rubber | |||||||
| Diaphragm / Rubber Boot | Neoprene | |||||||
| Hardware | SS 304 | |||||||
| Performance | ||||||||
| Volume Per Stroke | 10 oz / 300ml | |||||||
| Max Lift | 5 ft / 1.5 Meter) | |||||||
| Max Head | 10ft / 3 Meter | |||||||
| Mx Service Temp | 167 Farenheit / 75 Celcius | |||||||
