It is used as an outlet for liquid storage tanks.

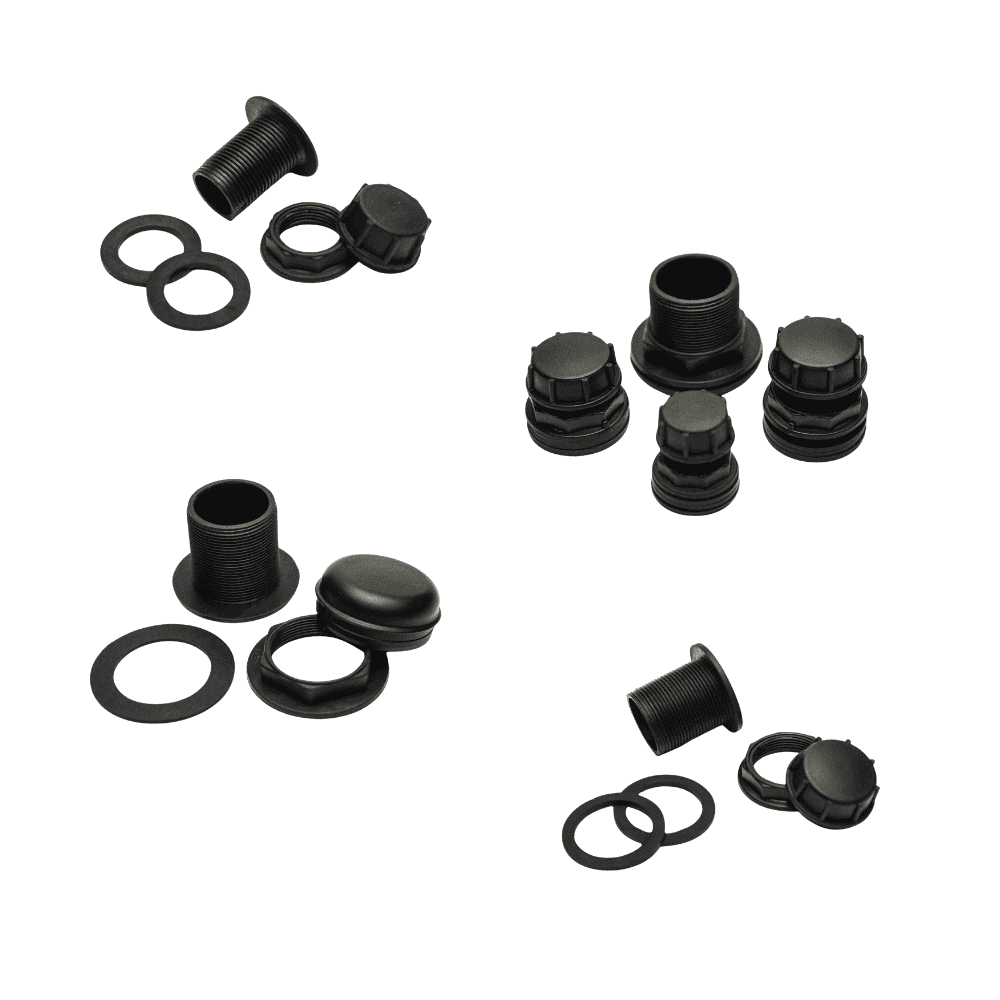

This is a 3 piece assembly. The outlet fitting is pushed through the tank wall, a gasket/seal is placed between the outlet and tank wall and then then the nut is tightened on the outlet giving a good seal.
The part comes with a gasket / seal to ensure a proper fit
| Dimensions | |||||
| Part # | Part Name | A | B | C | D |
| XNO 110 | 1″ BSPT Outlet Fitting with Nut and Gasket | 52mm | 1″ BSPT | 48.5mm | 54mm |
| XNO 110-C | 1″ BSPT Outlet Fitting with Nut, Gasket and Cap | ||||
| XNO 120 | 1-1/2″ BSPT Outlet Fitting with Nut and Gasket | 65.5mm | 1-1/2″ BSPT | 45mm | 50mm |
| XNO 120-C | 1-1/2″ BSPT Outlet Fitting with Nut, Gasket and Cap | ||||
| XNO 120L | 1-1/2″ BSPT Outlet Fitting Long with Nut and Gasket | 65.5mm | 1-1/2″ BSPT | 55mm | 60mm |
| XNO 120L-C | 1-1/2″ BSPT Outlet Fitting Long with Nut, Gasket and Cap | ||||
| XNO 130 | 2″ BSPT Outlet Fitting with Nut and Gasket | 83.5mm | 2″ BSPT | 60mm | 70mm |
| XNO 130-C | 2″ BSPT Outlet Fitting with Nut, Gasket and Cap | ||||
