Part # Part Name

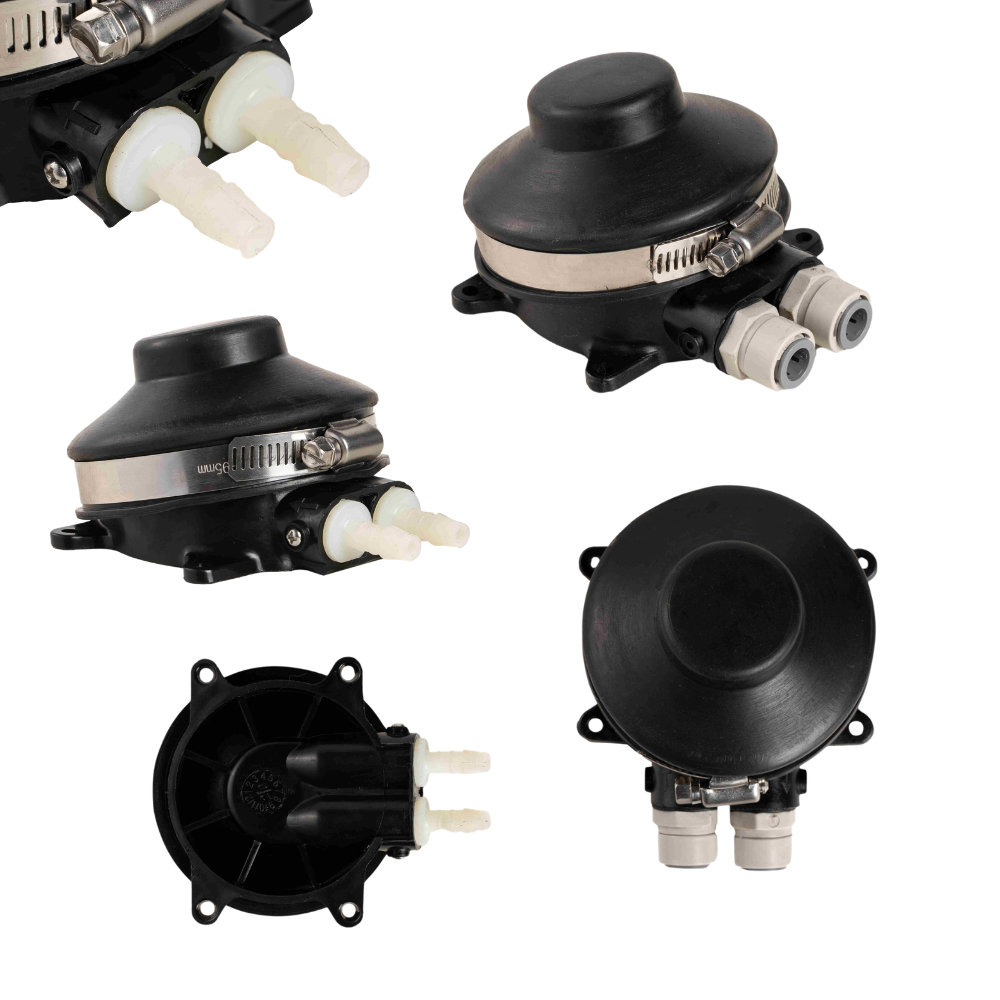

XPF G20 – 15 Small Foot Pump with 1/2″ Connector
XPF G20 – 14 Small Foot Pump with 1/2″ Connector
XPF G20 – 09 Small Foot Pump with 3/8″ Connector
XPF G20 – Q Small Foot Pump with Quick Connect
Dimensions
A B C D E F Weight
Inches 4″ 3″ 5″ 2-1/8″ 3-1/2″ 0.2″ 0.48 lb
mm 100mm 80mm 126mm 55mm 89mm 5mm 220g
Material
Pump Body Nylon 6 /  POM
Connectors / Barb Hose Nylon 66
Umbrella / One Way Valves Silicone
Diaphragm / Rubber Boot Neoprene
Spring SS 304
Clamp SS 304
Performance
Flow Rate per Pump 2.8 oz / 80ml
Max Lift 5 ft / 1.5 Meter)
Max Head 10ft / 3 Meter
Mx Service Temp 130 Farenheit / 55 Celcius
